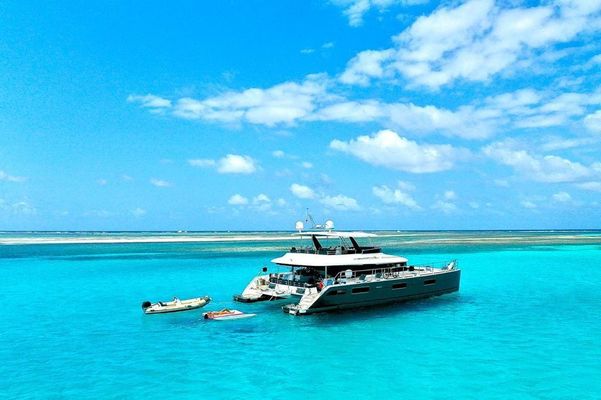

2016 Lagoon 630 Motor Yacht

How can you combine the requirements of offshore cruising with the high standards of a luxury motor yacht? Lagoon has come up with the 630 Motor Yacht to do just that. Yachtsmen have long wanted to expand their horizons with a long range, good performance motor yacht in total comfort and serenity.
And so the 630 Motor Yacht was born! This yacht has a double personality – it has inherited the widely renowned marine qualities of the Lagoon 620, and is also the result of work by talented VPLP architects and from Nauta Design and Lagoon’s own engineers. You can count on long distance blue water as well as coastal cruising aboard a luxurious residence.

  CONSTRUCTION

   Infused GPR and balsa with anti osmotic resin

   Keels and bottom hulls in infused monolytic

    Bulkheads in infused balsa

    Deck in white gelcoat

    Covering dark grey on hulls

   INTERIOR LAYOUT

   Owner’s version layout 4 double cabins +2 superposed beds

   Aft Port Galley with cockpit access

   Crew cabin in port forward peak

   Floor in Milano

   Seats in leather  light cream

   Carpet in cabins + salon

   Electrical folded curtains in salon

   Large salon on port side in L with 2 foldable and telescopic tables

   Main sliding entrance door in aluminium with window

   Storage lockers under bench and high cabinets

   4 x lockers under floor boards

   TV furniture with telescopic system

   Panoramic windows with 4 opening hatches

   Navigation station forward with comfortable  adjustable and rotative

   Lounge area in L on port side with coffee table

   PORT HULL WITH

   Galley at the rear with direct access to the cockpit:

   Double sink st/steel with mixing tap

   Induction cooking plate + hood

   Stove micro wave/grill

   Storage,garbage lockers,drawers

   2 x steel fridge 12V

   2 x freezers

  1 x Miele dish washer for 12

  1 x washer & dryer Miele 5kg

  Forward VIP cabin with drawers and storage

  Hanging cupboard and hair dressing table

  Forward head with separate shower

  Central cabin with 2 x single beds superposed

  Desk area

  Bathroom with toilet and shower

  Port forward gangway with fridge/freezer, ice maker

  Port forward peak for crew with:

  Berth ,shower ,toilet and wash basin

  STARBOARD HULL WITH

  Aft Master cabin with direct access on aft transom and Drawers and storage

   large hanging cupboard and hair dressing table

   Bathroom with separate shower and sandblastes glass & Separate toilet

   Forward VIP cabin with drawers and storage

    2 x hanging cupboards with hair dressing table

    Forward bathroom with separate shower

   Forward starboard peak for storage

   ENGINES AND TRANSMISSION

    2x Volvo 300HP D4

    2 x fixed propellers 4 blades

    Bow thruster on stbd 24V 2000KG with 2x joysticks

    Engine throttles at both helms + chart table

    4 x fuel tanks long range (4900L) with transfer pump

    Double fuel filter with alarm

    Pre-filter and primary filter for fuel

    Fan extractor in each engine room

    PLUMBING,TANKS,BILGES

    4 x fresh water tanks (960L)

     2 x water pressure pumps

     2 x water heaters

     Fresh water inlet on port side

     Fresh water purifier in the kitchen

    1 x black water holding tank 73L per toilet

    1 x electrical fresh water Tecma toilet per bathroom

    Grey water draining for showers & washhands with pump

    Grey water for sinks evacuated directly at sea

    1x electrical bilge pump per hull

     3 x manual bilge pumps in cockpit

    1 x electrical bilge pump per engine room

    Deck wash pump sea/fresh water forward

   ELECTRICITY

   Electrical circuit 12V/220V 50HZ splitted in 3:

   Domestic/Power/ Aircon

   Circuit 24V DC with negative at the ground

   Electrical Panels close to the chart table

   Management of circuit with monitoring

   8 x gel batteries Victron for services (840A 24V)

   2 x starting batteries for engines 48A 12V

   1 x battery 48A 12V for generator

   2 x alternators for engines 24V 110A connected to batteries

   2 x battery chargers 220V 12V 100A

   2 x inverter 5000W

   1 x inverter 24V/220V 2500W

   1 x inverter 24v/220V 3000W

   1 x shore power outlet 230v 50A

   A/C chilled water reversible 96000 BTU 220V

   Water maker 280 L/H Sea Recovery Aquamatic 220V

   Generator ONAN 19KVA with cocoon and fuel transfer pump

   Diving compressor Bauer Junior II 220V

   USB outlets in cabins and in galley

   Fans in cabins,galley and salon

   LIGHTING 12/220V

  LED lights in and outside

  Courtesy lights outside LED cockpit,transoms and fly

  Navigation lights

  Light at flying and cockpit

   4 x submarine lights Oceanled blue

   2 x LED spots in aft beam

   DECK EQUIPMENT

   BOW SECTION

   Forward cockpit with bench and sun mats

   Deck hatches for access to different  technical compartment

   Cross beam longitudinal in composite

   Mooring locker on stbd + light

   Electric windlass 2000W + remote control

   2 x trampoline

  Passage gangways in teak

  Port peak equipped with berth,toilet,shower,washbassin

  Starboard peak with storage and light

  Mooring locker and storage lockers forward

  Sea/Fresh water washing deck

  Guardrails with 3 raws of lifelines all around on deck

  FLYING BRIDGE

  Stairs with teak steps

  Floor at fly in teak

  Fixed bimini with opening top and sun covers

  Antenna and horn

  2x helm stations with compass and engines throttles

  Windlass control and chain counter

  Bench in U shape on stbd with ocushions

  Foldable teak table for 10 and st/steel support

  Sun Matress

  Bar with sink,bin and storage

  Fridge at Fly 60 L

  AFT

  Large cockpit protection by hardtop

  Large teak cockpit table telescopic for 10

  Cockpit floor in Teak

  Bench in C with cushions and 3 chairs

  Storage under bench

  Furniture on port with sink,bin,fridge and storage

  Ice Maker 220V and electrical grill 220V

  Fresh water inlet

  Sun Mattress area + aft cushions

  Storage for 2x liferafts

  2 x electric winches for 1000W for docking lines

  Enclosure of cockpit with windows and sun covers

  TRANSOMS & PLATFORM

  Transom with teak

  2 x deck showers hot/cold water

  2 x swimming ladders

  Tenderlift hydraulic 350KG with remote control

  Carbon foldable boarding plank 3,20m

    ELECTRONICS

  Chart table: Radar Screen Simrad

  Autopilot Simrad

  Transducer Simrad forward scan

  VHF Simrad RS90

  Helm Joystick

  Issuer receiver AIS 400 Simrad

  Navtex

  At Fly:

  Pack cruising Simrad

  Radar Simrad 4G

  Remote control for autopilot Simrad

  Repeater for VHF Simrad RS90

  2x cameras Simrad under fly

  ENTERTAINMENT & COMMUNICATION

  DVD/home movie Bose Lifestyle V25 + 4 speakers in Cockpit & Fly

  TV LCD 39’’ in salon on electrical lift

  Radio CD/DVD MP3 in all cabins

  Antenna TV hertzian,VHF ,radio

  TV LCD LG 23’’ in all cabins

  Antenna KVH TV 6

  Trackphone KVH V3

  Router 4G+iridium

  MISC,SAFETY

  Offshore security equipment for 8 (container liferaft)

  Spade anchor 50 kg + 100m chain

  Fortress 21KG

  Dinghy Ocean Master deluxe 460 grey + Honda BF 60 HP

  6x fenders ,4 x docking lines

  Set of covers for helms,winches,Tables and others
